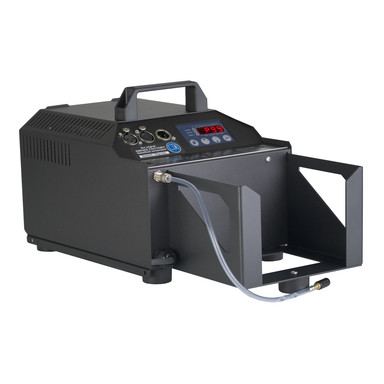

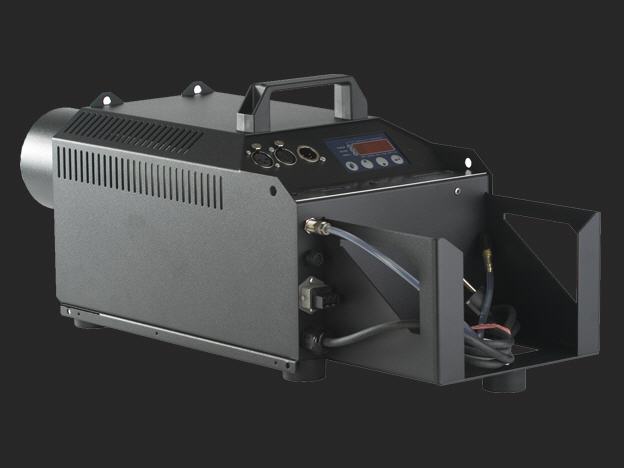

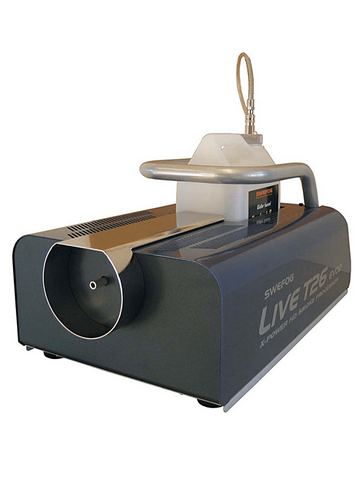

SWEFOG T26 Evo 2
reated and crafted to look and feel different from any other smoke machine in its class.
Inside and out, craftmanship prevails and ingenuity abounds. The fit and finish are designed to compete with the industry's best. In every sense, the T26 Evo2 is a truly unique smoke machine. It replaces the legendary LIVE T26 that set an industry standard when released in 2004.The new T26 Evo2 is designed with the same uncompromising technology, and every single detail has been re-designed to improve performance.
The heart is a heavy-duty smoke generating plant, using Swefog's X-power technology, delivering a massive 1,800 cubic metres/min of clean, dry smoke. Projects up to 20 m.The T26 Evo2 comes fully loaded, and offers more output, more functions and more technical innovations than any other smoke machine.
SWEFOG X-Power 2,600W heavy-duty smoke generating plant (SSR 3.2kW).
Upgraded XP3 cast aluminium heat exchanger with dual stainless steel vaporizer coils.
Dual high speed 16 bar fluid pumps. Heat-up time 9 min only.
Continuous operation at 50% output.
Very precise output control: Output adjustable in 99 steps (1-100%), manually or DMX. The LIVE T26 evo2 offers a smooth output at all levels, without drop outs or puffs.
User defined start of smoke generating:
At silent soft start mode fluid pumps speed up slowly, eleminating the "crack" noise from the heat exchanger. Perfect for theatres or similar events where a noise reduced operation is wanted.
At normal mode, pumps start at selected level, allowing for quick "smoke burst" effects.
Control inputs & outputs:
DMX 512, 0-10V,
Manual remote control.
Stand alone operation.
OFS - Optical Fluid Sensing: No wires, no switches. A maintenance free optical system protects the pumps from running dry at fluid empty. Manual & automatic reset.
New SWEFOG MERLIN 2 super-fast, microprocessor controlled electronics, software upgradeable. Illuminated alphanumerical display for quick & easy readout of settings & machine status.
LIVE T26 Evo2SSR THE ULTRA HIGH POWER VERSION (limited availability):
Equipped with a 3.2kW heat exchanger, the T26 Evo2 SSR offers the same features & high peak output as the 2,6kW version, but it can continuously produce a larger volume of smoke.
3,200W X-power smoke generating plant,max 1,800m /min.
Continuous operation at 70%, gives an output volume of 600m3 / minute, 25% more than the regular T26 Evo2.
Heat-up time 7 minutes only.
